Ball Lock Post Bulkhead - Gas In

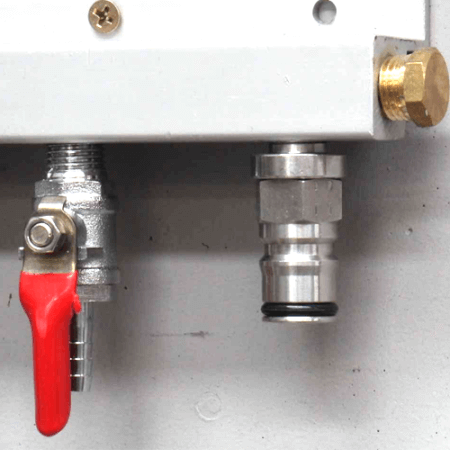

This gas in ball lock bulkhead assembly allows you to add a ball lock post just about anywhere. Create your own pressure vessel or attach it to one of our aluminum gas manifolds for a quick connect option.

1/4" NPT threads and locking nut.

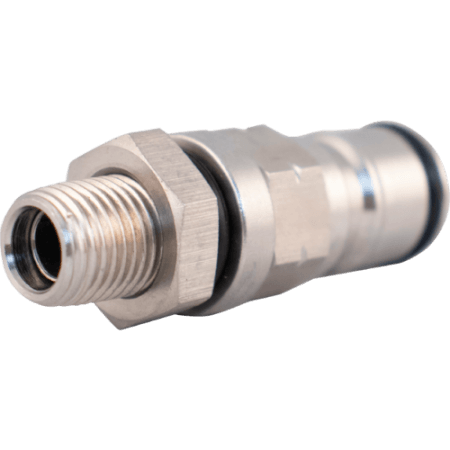

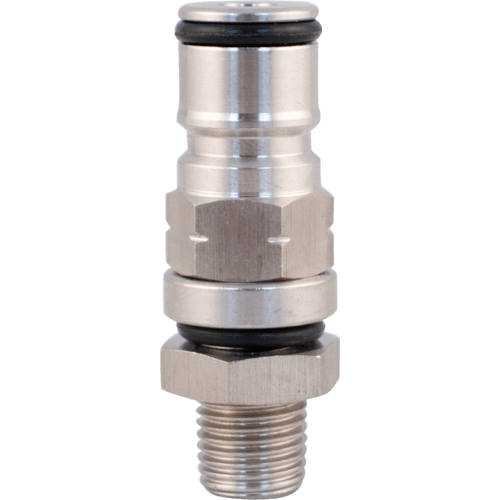

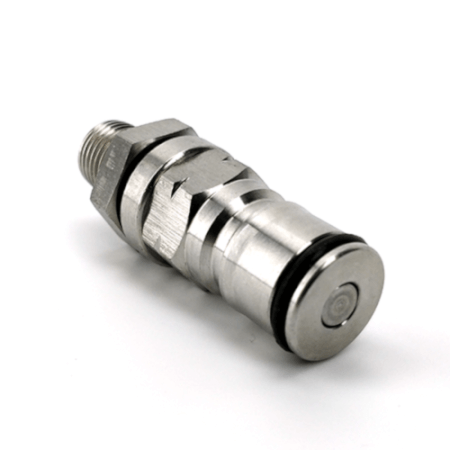

This assembly includes everything in the picture.
Note that this assembly does not support the insertion of a standard keg diptube. The bore is a little too small and just wasn't designed for that use.

Install instructions:
Drill and deburr a 9/16" diameter hole.
Insert the 1/4" NPT side of the fitting through the hole.
Thread the locknut down the threads and tighten up with a wrench on both sides.

WARNING: These parts could potentially be misused to pressurize a vessel that is not rated for pressure applications and we are adamantly advising customers to take caution and not to do this. Any sealable vessel that has a way to add pressurized gas should also have a non-defeatable pressure relief valve or similar safety mechanism.

Metal is 304SS and the rubber parts are silicone
